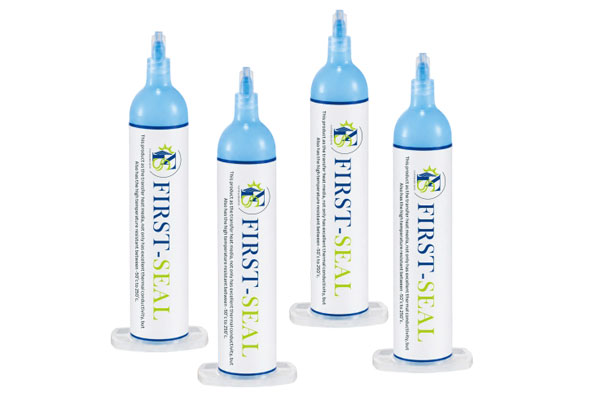

Single Component Thermal Gel

5G Communication Devices

Heat Sinks for LED Chips

CPU Cooling

Thermal Conductivity for Industrial Electrical Enclosures

INTRODUCTION

Thermal Gel is a gel-like thermally conductive material made of silicone composite thermally conductive filler through stirring, mixing and packaging.It never solidifies and maintains a paste or gel-like state for a long time in the temperature range of -40 to 180°C.It has the advantages of good anity, weather resistance, high and low temperature resistance and good insulation. At the same time, it has strong plasticity and can meet the filling of uneven interfaces and the heat transfer requirements of various applications. Because thermal Gel has the above many excellent properties, itis widely used as moisture-proof, shock-absorbing and insulating coating and potting materials for electronic components, and plays a role in dust-proof, moisture-proof, shock-proof and insulating protection for electronic components and assemblies. Comply with the requirements of the EU ROHS Directive.

APPLICATION

Widely used in various electronic products, the contact surface between the heating element and the heat dissipation facilities in electrical equipment
The contact surface between the heat sink of the LED chip and the aluminum substrate.
5G wireless high-power heat source, drone motherboard image processing chip, storage chip, gimbal photosensitive CMOS chip, etc.
Mobile phone CPU, automotive electronics, communication equipment, memory module, IGBT and other power modules, power semiconductor field, etc.

TECHNICAL SPECIFICATION

Model	Color	Conductivity (W/m-k)	Thermal Resistance (℃·in²/W)	Density (G/10S)	Extrudability (G/min)	Volume Resistivity (Ω·cm)	Breakdown Voltage (Kv/mm)	Operating Temperature (℃)	Limit Temperature (℃)	Flame Retardant Grade
FS-7714G	Blue	2.0±0.5	≤0.06	2.8±0.1	>30	≥10¹⁰	>5.0	-40~150	-50~200	V-0
FS-7715G	Blue	3.0±0.5	≤0.06	2.9±0.1	>30	≥10¹⁰	>5.0	-40~150	-50~200	V-0
FS-7716G	light blue	4.0±0.5	≤0.06	3.1±0.1	>20	≥10¹⁰	>5.0	-40~150	-50~200	V-0
FS-7717G	red	5.0±0.5	≤0.06	3.4±0.1	>15	≥10¹⁰	>5.0	-40~150	-50~200	V-0
FS-7718G	Pink	6.0±0.5	≤0.06	3.4±0.1	>10	≥10¹⁰	>5.0	-40~150	-50~200	V-0
