INTRODUCTION

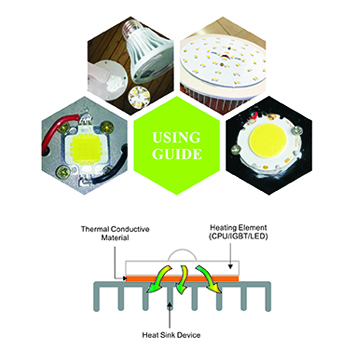

Thermal grease is kind of uniform pasty substance which composes thermally conductive filler, high-temperature synthetic oil, stabilizer and additive. The color is white or grey . It is used in the place between the heating element and cooling device.The radiator needs mechanical immobilization.The major advantage is its price and easy to repair.It can fill the heat sink and the device surface,reduce the thermal resistance contacting, so it is suitable for large power cooling device.

APPLICATION

It is widely used in various electronic products, and the surface between the heating element and the cooling device in the electrical equipment. It is used in the contact surface between the radiator of the LED lamp and the PCB. Suitable for SMD and COB lamp.

TECHNICAL SPECIFICATION

Model	Color	Conductivity (W/m·K)	Density (g/ml)	Cone Penetration (1/10mm)	Vdaf (%)	Breakdown Voltage (KV/mm)	Operating Temperature (°C)	Limit Temperature (°C)
FS-2107	White	1.0±0.2	1.9±0.08	360±20	<1.0	>3.0	-40~200	-50~250
FS-2108	Grey	2.0±0.2	2.35±0.08	310±20	<1.0	>3.0	-40~200	-50~250
FS-2108.6	Grey	2.6±0.2	2.38±0.08	280±20	<1.0	>3.0	-40~200	-50~250
FS-2109	Grey	3.0±0.2	2.3±0.08	270±20	<1.0	>3.0	-40~200	-50~250
FS-2110	Grey	4.0±0.2	3.0±0.08	260±20	<1.0	>3.0	-40~200	-50~250

INSTRUCTION

Cleaning: Clean the surfaces to be coated to remove oil and dirt.
Application: Squeeze the thermal grease directly and apply it evenly to the target surface. Use a brush or scraper to spread the grease on the heat-conducting interface, applying appropriate pressure to ensure the grease fills the gaps perfectly for optimal cooling performance.

CAUTION

Please note that the thickness of the thermal grease will aect the eciency of heat conduction, so please coat moderate quantity on the objects surface., and the thinner, the better.
Keep away from children.
If contact with the skin, wipe clean, and then wash with water, if contact with eyes, immediately wash with water, and go to hospital and check.

Thermal Grease Manufacturer in Ahmedabad

PACKAGING SPECIFICATIONS

Package Type	Box / Barrel Size
1kg / Can, 12 Cans / Box	43 × 31.5 × 12 cm
300ml / Tube, 25 pcs / Box	25 × 25 × 23.5 cm
25kg / Barrel	Ø30 × H38.5 cm
Customized Special Package	Available on Request

This product should be stored in a dry, cool place, avoid rain, sun exposure, storage period of 12 months(25 C). During storage, a small amount of silicone oil may outflow, and this is a normal state, does not aect the use of results. If necessary, should be used after mixing evenly.
Such products are non hazardous and can be transported in general chemicals.
