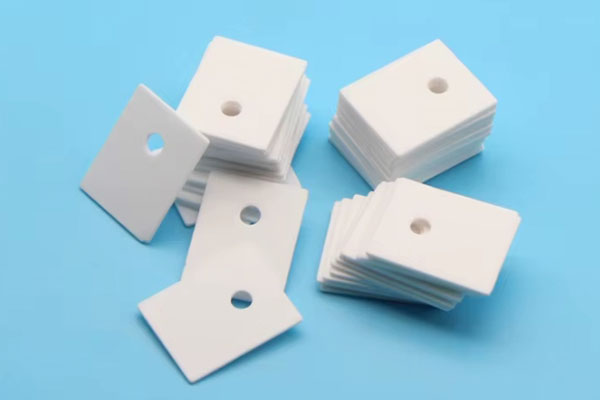

Thermal Conductive Ceramic Sheet

Introduction

The thermal conductivity of the ceramic sheet is as high as 24W / M.K. it is resistant to high temperature and high pressure. The surface of the ceramic sheet is smooth without burr and burr. It is heated evenly and dissipates heat quickly; Simple and compact structure, small size high strength, not easy to break, acid and alkali corrosion resistance, durable.

Product Features

Superior Chemical And Mechanical Stability
High Hardness, High Wear Resistance
High Thermal Conductivity, High Electrical Insulation
Eective Anti-interference (EMI), Anti-static

Typical Applications

IC / MOS / triode
Surface heat source for diode and IGBT
High density switching power supply

High frequency communication equipment
High frequency welding machine and other equipment

Test Items	Unit	FS-AL096	Test Method
Colour	-	White	-
Specific Gravity	g/cm³	3.70	GB/T 2413
Thermal Conductivity (25°C)	w/m.K	24	ISO 22007-2
Dielectric Constant	1MHz	9-10	GB/T 5594.4
Breakdown Voltage	KV/mm	≥17	GB/T 5593
Flexural Strength	Mpa	≥400	GB/T 5593
Warpage	‰	≤2
Surface Roughness	µ m	0.2-0.75	GB/T 6062
Water Absorption	%	0	GB/T 3299
Volume Resistivity (20°C)	.cm	≤10¹⁴	GB/T 5594.5
Thermal Expansivity	10^-6 °C^-1 (20-300°C) 10^-6 °C^-1 (300-800°C)	6.5-7.5 6.5-8.0	GB/T 5594.3

Conventional thickness: 0.3MM, 0.38MM, 0.5MM, 0.635MM, 0.76MM, 0.8MM, 1.0MM, 1.2MM, 1.5MM, 2.0MM
