Thermal Conductive Silicone Sealant Manufacturer Ahmedabad, Gujarat, India

INTRODUCTION

The thermal conductive silicone sealant is mainly made of bonding agent and conductive particles. It is pasty mixture before applying, and solidifying in certain times and conditions. The Thermal conductive silicone sealant has good adhesion, no need to install screws or other extra mechanical immobilization. Cured at normal temperature. The curing condition is simple and can be repaired.

APPLICATION

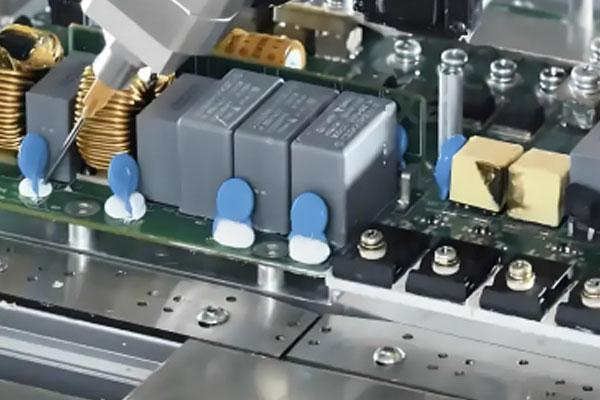

It is widely used in power supply, chargers and other parts for the fixed bonding sealing, heat conduction.
Led lamp radiator and PCB for bonding and thermal conduction. Suitable for SMD chips.
For other electronic, electrical components of the bonding heat conduction.

TECHNICAL SPECIFICATION

Model	Color	Conductivity (W/m-k)	Density (g/ml)	Vdaf	Hardness (Shore A)	Breakdown Voltage (kv/mm)	Surface Dry Time(Min)	Full Cure Time(H)	Operating Temperature (oC)	limit Temperature (oC)
FS-7576	White	1.0 + 0.2	1.6 + 0.1	<0.1	30	>10.0	5 ~ 10	12	-40 ~ 180	-50 ~ 250

CAUTION

Keep away from children
After the opening of the silica gel, as far as possible to use
If contact with the skin, wipe clean, and then rinse with water if contact with eyes immediately wash with water and go to the hospital to check.

PACKING

50 ml/tube 200 tube/box (size of box : 53.5 X 29.2 X 19.7cm)
100 ml/tube 120 tube/box (size of box : 56 X 28.5 X 25.5 cm)
300 ml/tube 25 tube/box (size of box : 25 X 25 X 23.5 cm)

2600 ml/tube 4 tube/box (size of box : 26.5 X 26.5 X 31.5 cm)
Customized Special package

STORAGE AND TRASPORT

This product should be stored in a dry, cool place, avoid rain sun exposure, storage period of six months (25°C).
Such products are non hazardous and can be transported in general chemicals.
